目标：现要求Centos7服务器加入AD域并实现基于AD认证的samba共享
环境：
Windows Server 2012(AD域控制器)
域名：huiju.com
主机名：win2012-ad1
IP地址：192.168.1.1
CentOS 7
主机名：centos01.huiju.com
实现步骤：
1)安装必要软件和配置
yum install -y samba samba-common samba-client samba-winbind* krb5-workstation ntp
#设置服务开机启动
systemctl enable smb
systemctl enable winbind
#配置hosts
vim /etc/hosts
在下面添加ad域控的ip和主机名
192.168.1.1 win2012-ad1.huiju.com
#添加DNS地址
vim /etc/resole.conf
nameserver 192.168.1.1
#设置主机名
hostnamectl set-hostname centos01.huiju.com

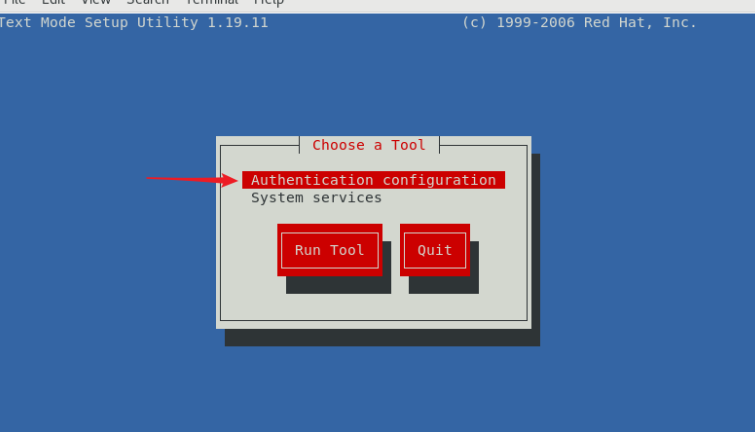

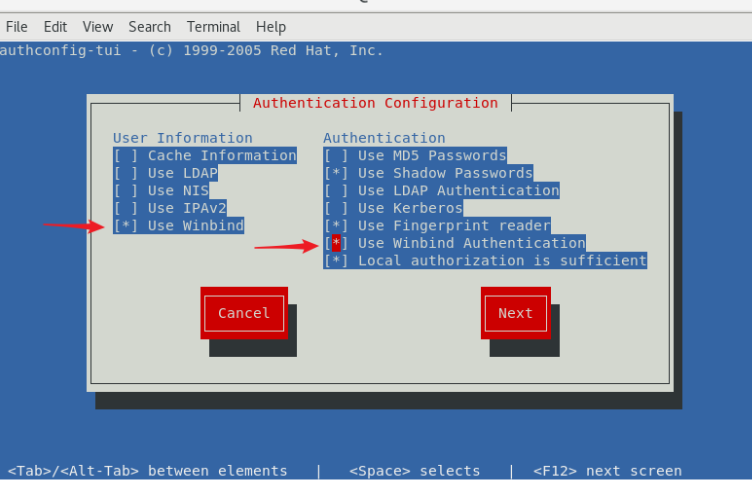

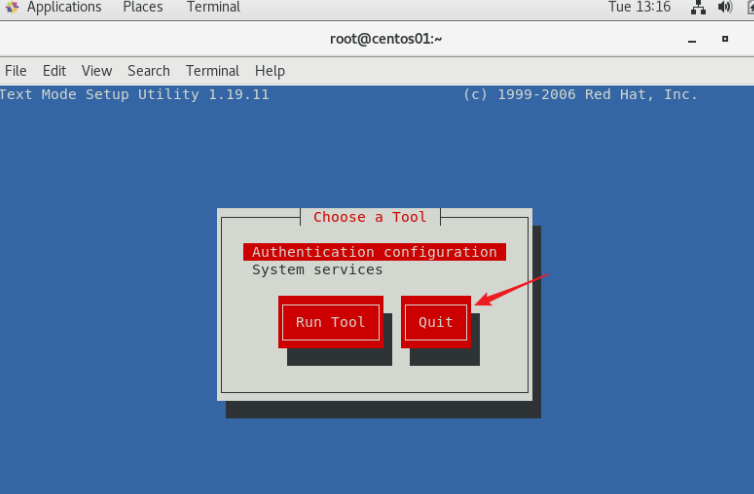

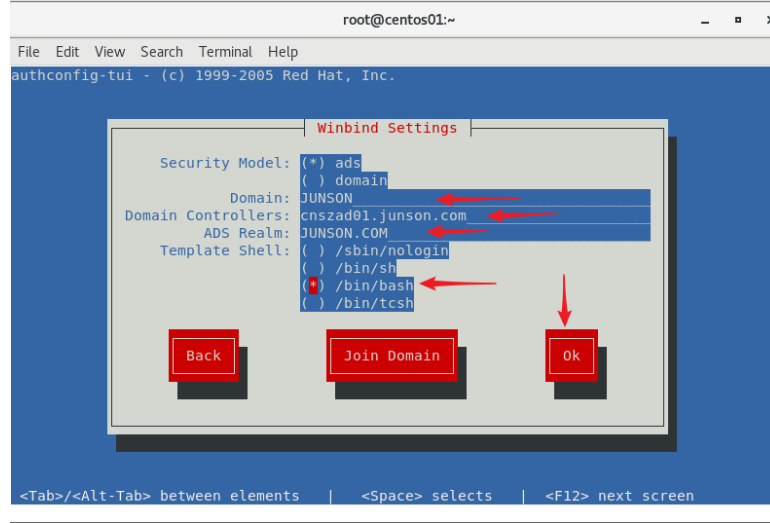

2)用setup命令来快速设置winbind
3)#创建共享目录并授权
mkdir -p /share
chgrp -R “fileshare_w” /share/
chmod -R 770 /share/
PS：fileshare_w是AD中的组的名字，与samba配置文件的中的组是匹配的
4)配置samba
vim /etc/samba/smb.conf [global] encrypt passwords = yes winbind enum users = yes winbind enum groups = yes template homedir = /home/$D/%U display charset = UTF8 max connections = 100 workgroup = HUIJU password server = win2012-ad1.huiju.com realm = HUIJU.COM security = ads idmap config * : range = 16777216-33554431 template shell = /bin/bash kerberos method = secrets only winbind use default domain = true winbind offline logon = false passdb backend = tdbsam printing = cups printcap name = cups load printers = yes cups options = raw [homes] comment = Home Directories valid users = %S, %D%w%S browseable = No read only = No inherit acls = Yes [share] comment = Qzing Share Directories path = /share valid users = "@HUIJU\fileshare_w" force group = "fileshare_w" writable = yes read only = no force create mode = 0660 create mask = 0777 directory mask = 0777 force directory mode = 0770 access based share enum = yes hide unreadable = yes
5)设置nsswitch
vim /etc/nsswitch.conf
找到以下三行并将winbind移至sss前面
passwd: files winbind sss
shadow: files winbind sss
group: files winbind sss
6)添加登陆自动创建home目录的设定
用vim编辑/etc/pam.d/system-auth和/etc/pam.d/password-auth这两个文件，在下面添加以下信息
session required pam_mkhomedir.so
7)加域，其中administrator是域控的管理员账号
net ads join -U administrator
加完可以输入wbinfo -t，显示如下代码则表示加域成功，同时域控也可以看到这台centos的主机名
重启smb和winbind
systemctl restart smb
systemctl restart winbind
这个时候share目录可以正常访问，但是home目录还是访问不了的，因为这个账户没有在centos主机上登陆过，所以还没有自动创建home目录，所以无法访问，
